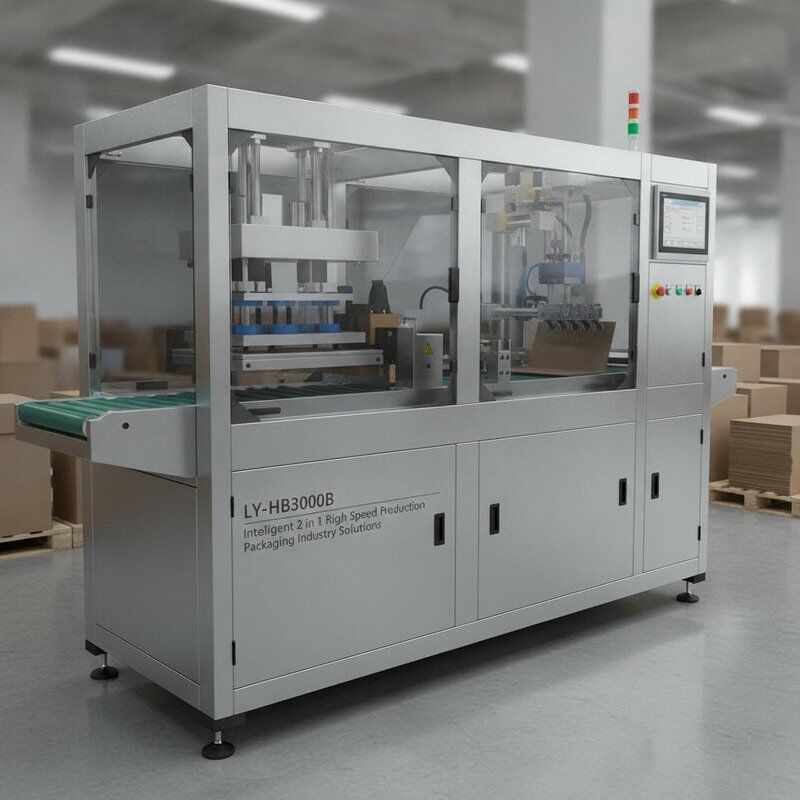

LY- HB3000B Intelligent 2 in 1 High Speed Rigid Box (Making Machine with Bubble Pressing)
LY-HB3000B is an Intelligent 2-in-1 High-Speed Rigid Box Making Machine with Bubble Pressing. Production speed up to 60 pcs/min (for single-size production) and 30-35 pcs/min for normal operation, suitable range is wide, it can fully meet the needs of today's diversified packaging market. Suitable for the production of rigid boxes like smartphone boxes, makeup boxes, jewelry boxes, wine boxes and other boxes.
This machine adopts servo control system and visual positioning system to realize automatic completion of paper feeding, gluing, cardboard feeding, corner pasting, positioning, box forming, edge wrapping, and built-in bubble pressing.
Feeding, glue and conveyor belt using well-known brand servo drive, can be infinitely variable speed, high precision, easy to adjust, save time. Positioning part adopts German multiple camera system with 10 million pixel tracing and YAMAHA robot arm for precise gray box grasping, improving positioning accuracy and efficiency. Positioning accuracy reaches ±0.05mm, with change-over-time as short as 40 minutes. The dual forming stations and virtual cam servo driving system ensure high output and stable operation.
Key Features
- Shortest Change-over-time, thereby saving precious machine time
- Uses highly accurate Visual Robot arm positioning with German multiple camera system
- Dual Forming stations for high output
- Includes in-line Bubble pressing module
- Production speed up to 60 pcs/min for do one size production
- Positioning accuracy ±0.05mm
- Change-over-time (job transfer time) in 40 Minute
- Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
Excel cut consists of following sections
Feeder
1. Feeder is controlled by a servo motor.
2. Paper-feed-in overturn function.
3. Big diameter pneumatic vacuum control valves.
4. The rubber pressure roller for the feeding-in paper.
5. Antistatic platform for paper.
6. The automatic lifting function for feeding stack.
7. Feeding stack auto stop when top paper in position Feeder control by servo motor.
8. Independent controlled paper feeding table and independently controlled sheet roller.
9. Avoid the inconsistency of the length of the paper between the two sheets.
Positioning
1. YAMAHA Robot Arm for spotting the box.
2. Camera with in 10 million Pixel tracing system,positioning accuracy can reach 0.05mm.
3. Cameras with robots arms working XY Spool for positioning.
Corner pasting
|
<img data-cke-saved-src="/photo/box-makingmachine/editor/20260422101318_57308.jpg" src="/photo/box-makingmachine/editor/20260422101318_57308.jpg" photo="" box-makingmachine="" editor="" 20260422100914_50429.png"="" width="300" height="175"> |
1. Adopt bottom suction after the box is formed:secure it with a downward-pull suction nozzle, allowing the tray to stable fall onto the conveyor belt.
2.Conveyor belt feeding system simultaneously transports two matching boxes of different sizes to the positioning section.
3. Easy to set up, tape width in 19mm.
Forming Part (within bubble pressing function, no need bubble pressing machine)
1. Automatic setting by servo motors, it is compatible with different brands of 950mm-high positioning machines.
2. Dual Station smart wrapper for increased production.
3. With a bubble pressing function, eliminating the need for a separate bubble pressing machine.
4. Virtual cam servo driving system.
5. Alarm device for collision detection.
6. Lift the box by holding the side of the box.
7. Scratch resistant for the paper.
8.The minimum forming dimensions is 45*45*15mm.
The maximum forming dimensions is 550*400*130mm,
multiple to do big size box without corner pasting machine
