Name: LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-750B
Price: 17500 USD
Availability: InStock

Para casa > produtos > máquina de cola de canto da caixa >

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Lugar de origem:

China

Marca:

Lishunyuan

Certificação:

Número do modelo:

LY-750B

Documento:

LY-750B Automatic Corner Pa...up.pdf

Contacte-nos

Solicite um orçamento

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Detalhes do produto

Modelo:

LY-750B

Tamanho do papel máximo:

740*640mm

Espessura do papel:

1-4 mm

Tamanho da caixa (máx.):

L500*W400*H150mm

Tamanho da caixa (min):

L80*W60*H20mm

Tamanho da caixa de manga (máx.):

L400*W120*H150mm

Tamanho da caixa de manga (min):

C80*L30*A20mm

Altura de pilha de papel:

1000mm

Velocidade de produção:

25-45 PCS/min

Fonte de energia:

380V/50Hz

Potência total:

3,88 kW

Pressão do Ar:

0,5-0,8MPA

Tamanho da largura da fita:

19mm

Peso da máquina:

1280KG

Tamanho da máquina:

2250*2100*2200mm

Destacar:

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Termos de pagamento e envio

Quantidade de ordem mínima

Preço

Negotiate

Detalhes da embalagem

caixa de filme e madeira compensada

Tempo de entrega

15-20 dias

Termos de pagamento

T/T

Habilidade da fonte

15 SETS/MONTH

Produtos relacionados

LY-430TJ Máquina de colagem de canto múltipla Máquina de colagem de canto Máquina de caixa de manga

Obtenha o melhor preço

Vídeo

Máquina de colagem de canto de caixa LY-750 com aplicador de reforço de canto totalmente automatizado para processamento rápido e preciso de cartão

Obtenha o melhor preço

LY-TJ40 Máquina de colagem de canto de caixa semi-automática Velocidade de operação 20 - 40 PCS / min

Obtenha o melhor preço

Vídeo

LY-750 85pcs/min Máquina de colagem de canto totalmente automatizada

Obtenha o melhor preço

Contacte-nos

+86-13802379158

aureal@dglyjx.com

86-769-23174590

Contacte agora

Descrição do produto

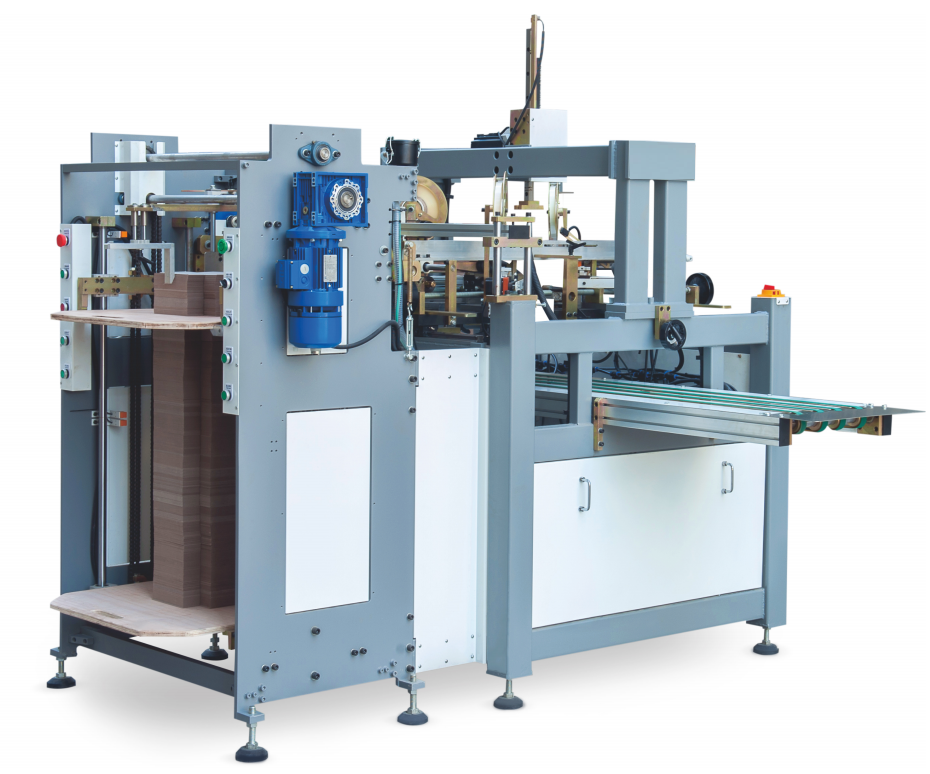

LY-750B Automatic Corner Pasting Machine (Intelligent Setup)

This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Driven by servo motors, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Key Features

Intelligent setup interface system, which is simple, easy to learn, understand and operate.
Setting up time in 10mins.
The full servo drive control system and PLC programming ensure the accuracy and performance of the product.
Non-stop feeding, reduce labor intensity,decrease machine stopping time .
The paper feeding adopts a belt-driven pull-out system, effectively increasing production output.
Compatible with PET and kraft paper tape, providing a variety of options for your products.
The production efficiency of this machine is 3 to 5 times that of traditional manual corner pasting.
Multiple functions able to do square boxes and sleeves boxes.

Product Examples

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Product Types

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Technical Specification

Model	LY-750B
Maximum paper size	740*640mm
Paper thickness	1-4mm
Box size(max)	L500W400H150mm
Box size(min)	L80W60H20mm
Sleeve box size(max)	L400W120H150mm
Sleeve box size(min)	L80W30H20mm
Paper stack height	1000mm
Production speed	25-45 pcs/min
Power supply	380V/50Hz
Total power	3.88kw
Air pressure	0.5-0.8Mpa
Tape width size	19mm
Machine dimension	255021002200mm
Machine weight	1280kg

Packing and Shipping

Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications

Quality After-Sales Service Commitment

1 Hour Service: We respond to service requests within one hour with solution recommendations
12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
Pre-sale Service: Comprehensive training programs with professional engineers before delivery
Sale Services: Installation, debugging, and one week of free training services upon machine arrival
After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
