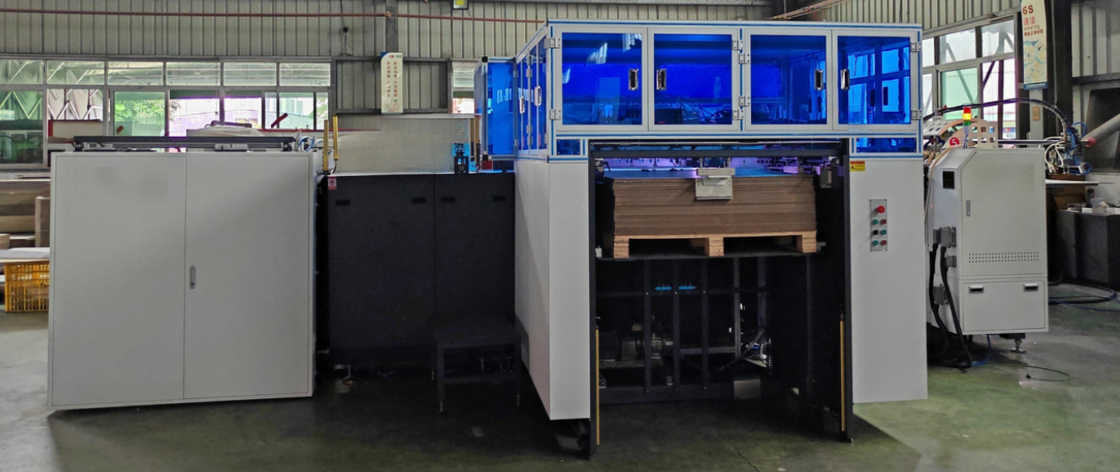

LY-1050C- Automatic Lining Machine
( Visual positioning )
Facility profile:
1.Independent control by different servo motor for feeding.
2. Within 2 sets of high precision cameras
Positioning accuracy of ± 0.05mm.
Servo robot arm are adopted to accurate position all kinds of product ,
such like hardcover and lining,etc.
3. Able to production box and case at the same time, Capacity up to15-20PCS/Min.
4. Easy to setup enhance productivity and increase enterprise profit
Details:
|
|
|
|
1.Structure of printer’s cam gear. Catching up one piece of paper first and blowing it into the roller, reducing the defective percentage. With the specification of the paper raged from 80g/㎡ to 300g/㎡ , you can enlarge your business scope and increase enterprise profit.
2..Adopted a circulatory system that is suitable for hot & white glue to avoid splashing glue and reduce your clean time, making the machine working stabilized.
3.Adopted a heating system that heating at regular time and constant temperature to avoid waiting time.
4.With blender(beater) inside, which can stir the glue evenly to ensure the same viscosity of the glue on paper and reduce defective percentage caused by inferior glue.
5.The feeder, roller, conveyor belt have their own servo motor and work as a whole with a strong coordination and stability, which can reduce debugging time, enhance productivity and increase enterprise profit.
6.The gluing roller is made of medium carbon steel with its surface covered by 304 stainless steel, making your machine much more durable and very easy to be cleaned, which can help you reduce the maintenance cost.
|
|
|
|
|

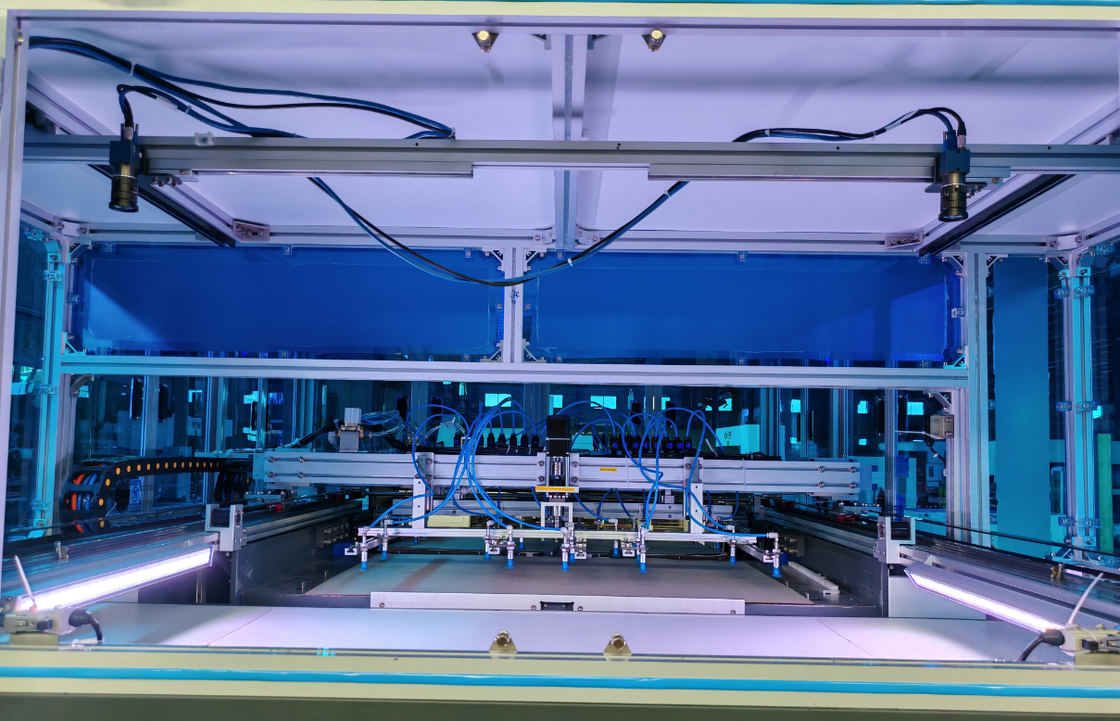

1. Fully servo Robot Arm for spotting the gray board .
2. two cameras with Lens in 10million Pixel tracing system
3.Double Camera with XY Spool for positioning.
4. positioning accuracy in 0.05mm.
5.The material storage area adopts a pre-feeding and secondary positioning mode to guarantee positioning accuracy.
|
|
|
|
|
|
|

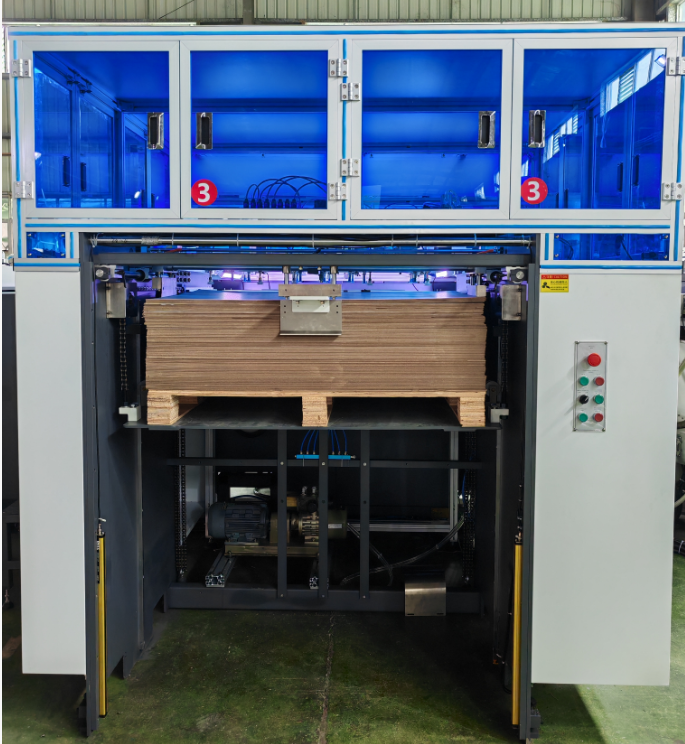

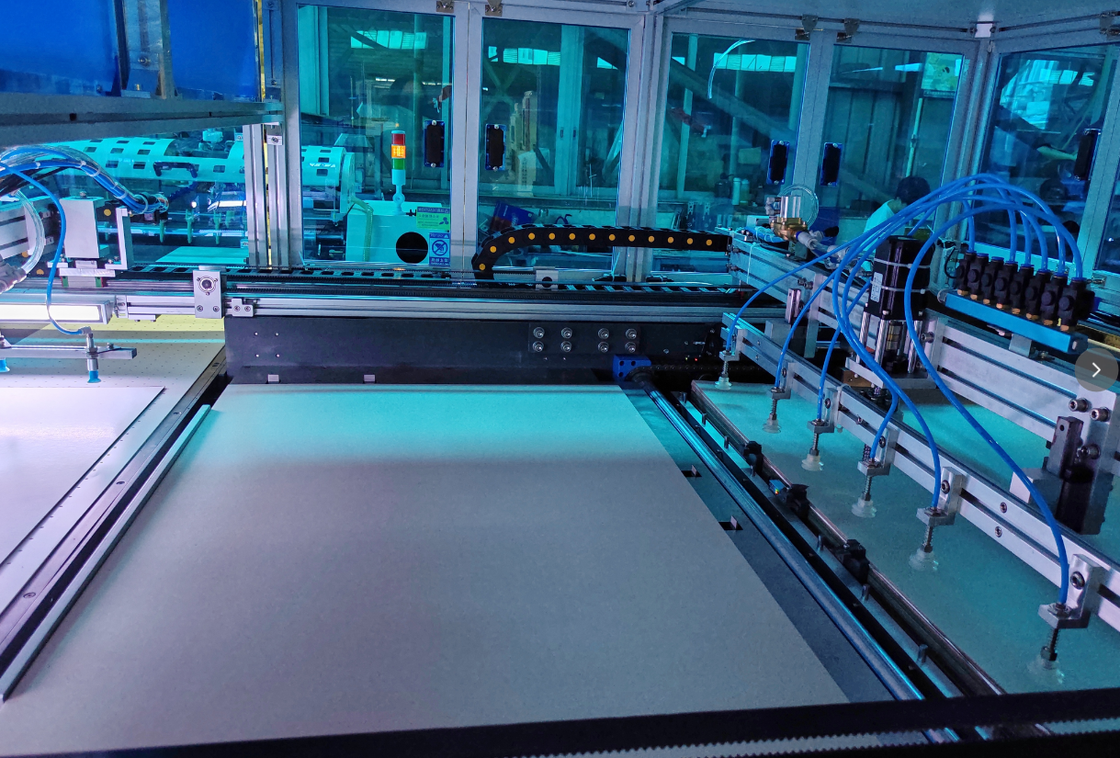

1. Robot suck arm able to pick .
2. Whole pallet feeding is adopted, eliminating manual handling and reducing labor costs.
3. The automatic receiving platform is equipped with an automatic stack mechanism to ensure the flatness of paper boards.
|
Technical Parameters:
|
Model:
|
LY-1050C
|
|
paper size(L*W)
|
L:120-1100mm W:95-850mm
|
|
Size for lining(L*W)
|
L:120-1050mm
W:60-7500mm
|
|
Paper thickness:
|
80-400gsm
|
|
Board thickness:
|
400-1500gsm
|
|
Precision accuracy:
|
±0.05mm
|
|
Speed:
|
15-25 sheets/min
|
|
power supply:
|
380V/220V/50Hz/3phases
|
|
glue tank capacity:
|
50kg
|
|
constant power:
|
11.5kw
|
|
Machine size:
|
L8000×W3300×H2600mm
|
|
Machine weight:
|
5100kg
|
Packing and Shipping:
Company Introduction:
Founded in 2001 and situated in Dongguan City, Guangdong Province, LiShunyuan boasts a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has built a comprehensive sales and after-sales service network across China, with its products exported to over 40 countries and regions spanning Europe, America, Southeast Asia, South America, the Middle East and Africa.
Innovation stands as LiShunyuan’s core competitive strength. The company holds independent intellectual property rights for its product portfolio, which covers the rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in the production of premium gift boxes, mobile phone packaging boxes, cosmetic boxes, wine and liquor boxes, as well as other high-end boutique packaging boxes.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the development strategy of "Strive for Perfection, Forge New Paths", LiShunyuan is committed to R&D and development of high-performance, high-efficiency new products for the packaging industry, and is at the forefront of driving the rapid advancement of intelligent automation within the sector.
Our Services & Strength
We offer industry-competitive machinery, a professional quality control team, and comprehensive customer service. At LiShunyuan, we place great emphasis on providing full-spectrum support to our clients – spanning from pre-sales consultation and custom machinery development tailored to specific requirements, to the manufacturing of box-making equipment and ongoing, thorough after-sales support. We are committed to delivering maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging boxes, all fully aligned with the unique needs of each individual client.
